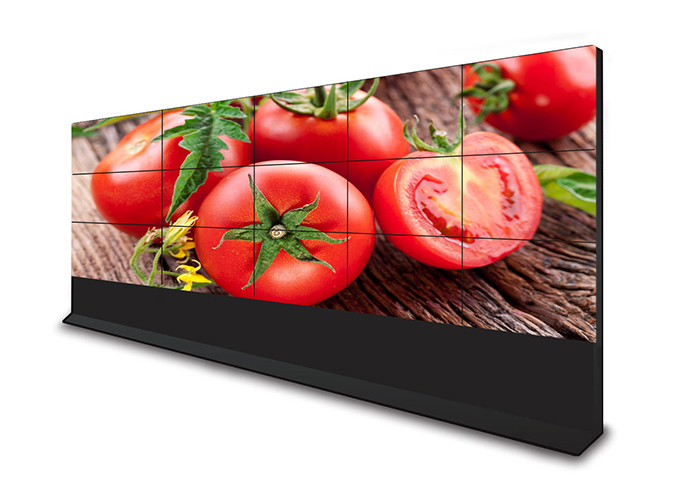

HBONY seamless lcd video wall with Resolution 1920 x 1080 / 3840 x 2160
Features
1.Unit size:55 inch low price
2.Bezel:1.8mm ultra narrow
3. Interface: VGA,DVI,HDMI,BNC,AV,RS232
4. Splicing Way: Horizontal/Vertical
5. Installation Way:Wall mounted, Floor standing, Embedded in wall or Cabinet
6. Maintenance Way: Front/Back
7. Applications:Surveillance system,advertising,information display,Meeting room
8. Usage:Indoor(500nits/700nits)/Outdoor(1500nits~2500nits)
9. LED direct-lit backlight with uniform brightness and no boundary shadow.
10. Resolution: 1920 x 1080/3840*2160
11. High display resolution, and delicate image with rich color;
12. High definition, high brightness, high color gamut
13. DID LCD screen with 178 wide angle.
14. Large display area with light weight
15. Longer display lifespan
16. Multiple jointing methods, applicable for various scenes.
17. Stable running and low maintenance cost,
Ultra narrow seamless lcd video wal, bezel-to-bezel width is as low as 3.5mm, by which you can hardly see the gap when the video wall presents a display window.
The brightness is 500cd/m2 or 700cd/m2 which can meet the demands of indoor environment. The high contrast up to 4000:1 can display the picture in a pretty vivid way.
It is a kind of energy save technology, as well as small size, long lifetime and no radiation etc. Meanwhile it can re-show the picture vividly and in the original color.
The picture on the video wall is uniform because of led backlight and the light compensation point technology.
Available size: 55 inch, 46 inch video wall display unit(bezel-to-bezel width 3.5 mm, 5.3mm).
Metal case enhances the function of anti-radiation, anti-magnetic filed and strong electric field interference.
Working humidity: 10% ~ 90%, able to work under harsh envionment.
Specification
| Specification/Model | HBY-PJ550P |
| Panel size | 55Inch |
| Aspect Ratio | 16:9 |
| High Resolution | 1920*1080 |
| Pixel Pitch | 0.63(H)*0.63(V) |
| Number of Color | 16.7M |
| Brightness | 500cd/m² 700cd/m² |
| Contrast Ratio | 4000:1 |
| Responsive Time | 8ms |
| Panel Life | Above 50000 hours |
| Certificate | FCC/CE/ROHS/ISO |
| Warranty | 1 year |
| Visual Angle | Horizontal 178/Vertical178 |
| Power Supply | Input:AC110-220V-50/60Hz |
| Panel Display Area | (Width)1209.6mm*(Height)680.4mm |
| Working Humidity | 10~80% |
| Working Temp. | 0~40°C |
| Input Port | 2*BNC, 1*VGA, 1*DVI,1*HDMI ,1*RS232 |
| VGA/DVI Resolution Ratio | 640*480,800*600,1024*768,1280*1024,
1600*1200,1920*1080 |
| Bezel | 3.5mm |
| Output Port | 2*BNC,2*RS232 |
| Power supply | 280W |
| Standby power | 0.5w |
| Voltage | AC110-220V 50/60HZ |
Application:
The splicing picture combination, can reach the advertising media to the pursuit of large screen . Widly use to monitoring centre,Airport, Finacial ,Metro,shopping mall,supermarket,Public
